Description

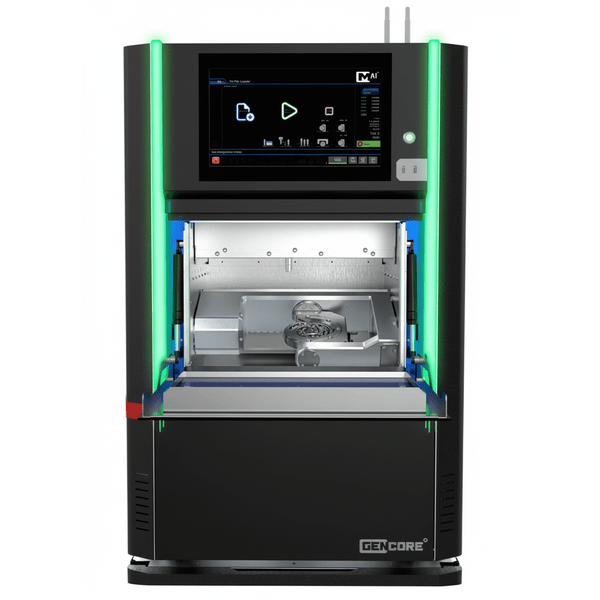

M AI° – Features / Capabilities
Spindle
Equipped with a DC 1.37 kW spindle from SycoTec (Germany). Compared to AC spindles, DC types offer more precise speed and torque control, faster response, and better durability.
Ballscrew & Reducer
-
X, Y, Z axes use C5 class ball screws for high precision
-
A, B axes use Harmonic Drive for backlash elimination and high torque transmission
Nozzle
Cutting fluid is sprayed from four directions toward the tool blade. The design minimizes periods when the tool blade isn’t in contact with coolant, ensuring stable machining.
Intuitive UI
The user interface is designed to be intuitive and user-friendly, enabling even novice operators to control it easily and ensuring smooth user-equipment interaction.
90-degree Milling
The jig allows machining from multiple angles to minimize undercuts. The Full Closed Loop Control system enables precise control even when axes move freely in multiple directions, supporting complex machining operations with versatile accessories.
Jigs
-
C-Clamp Jigs (Ø 98.5 mm disk)
-
Premill Jigs (#10 slots, 5-axis)
-
Block Jigs (#10 slots, 5-axis)
Tools
Supports a broad range including 4 types of zirconia, 4 types of glass ceramics, metal discs, etc. Total of 28 tool types supported.
AI Calibration
Fully automated AI Calibration minimizes errors occurring in the machining process (e.g. jig installation, tool wear). It ensures consistent, precise machining and enhances stable production competitiveness.
Materials / Suitable Workpieces
Glass ceramics, metal discs, PMMA, titanium pre-milled blocks, zirconia, hybrid resins.
M AI° – Specifications
| Parameter | Value |
|---|---|
| Milling Methods | Combined dry / wet |
| Size (Machine) (W × D × H) | 607 × 768 × 910 mm |
| Size (Table) (W × D × H) | 607 × 768 × 790 mm |
| Weight (Machine) | 135 kg |
| Weight (Table) | 70 kg (80–90 kg with full options) |
| Spindle Capacity | DC 1.37 kW |
| Max Rotation | 60,000 RPM |
| Average Torque | 20.1 N·cm (S1, IEC 60034-1) |
| Drive Axis | Simultaneous 5 axes |
| Motor (Axis) | 400 W servomotor on all 5 axes |
| Axis Drive Control | 100% Full Closed Loop Drive Control System |
| Drive Units | X / Y / Z: C5 Class Ball Screw & LM Guide; A / B: Harmonic Drive |
| Axis Travel / Range | X / Y / Z: 200 mm / 256 mm / 130 mm A / B: +35° to –35° / 360° (free rotation) |
| Tool Pockets | 28 types |
| Monitor | 13.3″ LCD Touch Monitor |
